We provide Live Transcoder as a Docker container downloadable from DockerHub. Therefore you need to have a host instance to run the Docker container on.

Live Transcoder needs an Nvidia GPU to work, so you need to use an instance with Nvidia GPU. We recommend using NCasT4_v3 instances with Nvidia Tesla T4 GPUs as they provide a good price/performance ratio.

Select the region

We recommend selecting the region closest to you for the lowest latency. However, GPU instance prices vary between regions, so you may check other regions as well.

Select the right instance size

We recommend you start with Standard_NC8as_T4_v3 (eight vCPUs, single Nvidia Tesla T4) instance size and change the instance type if needed.
Generally, you'll need two vCPUs per 1080p h264 4:2:0 8bit stream and sixteen vCPUs per 1080p h264 4:2:2 10bit stream, but this may vary with the resolution/quality/codec used.
We strongly recommend you increase the instance size (vCPUs) if the overall CPU utilization exceeds 75%.
Our support can help you choose the right instance size.

Create the instance

Head to Virtual machines > Create > Virtual Machine

Instance settings

Basics

Project Details

Subscription: Select your active Azure subscription.
Resource group: Select an existing resource group or create a new one.
Virtual machine name: Enter a descriptive VM name.
Region: Choose the target region where the VM will run.
Availability options: Select "No infrastructure redundancy required".
Security type: Select "Standard".
Image: Select "Ubuntu Server 24.04 LTS - x64 Gen2".
VM architecture: Select "x64".
Size: Select "Standard_NC8as_T4_v3".

Administrator account:

Under Authentication type, select “SSH public key”. If you do not already have an SSH key pair, generate a new one in the portal and give it a distinctive, meaningful name so you can identify it later.

Inbound port rules

Enable inbound port rules for SSH (TCP/22), HTTP (TCP/80), and HTTPS (TCP/443) to allow secure remote access and web traffic to the virtual machine.

Disks

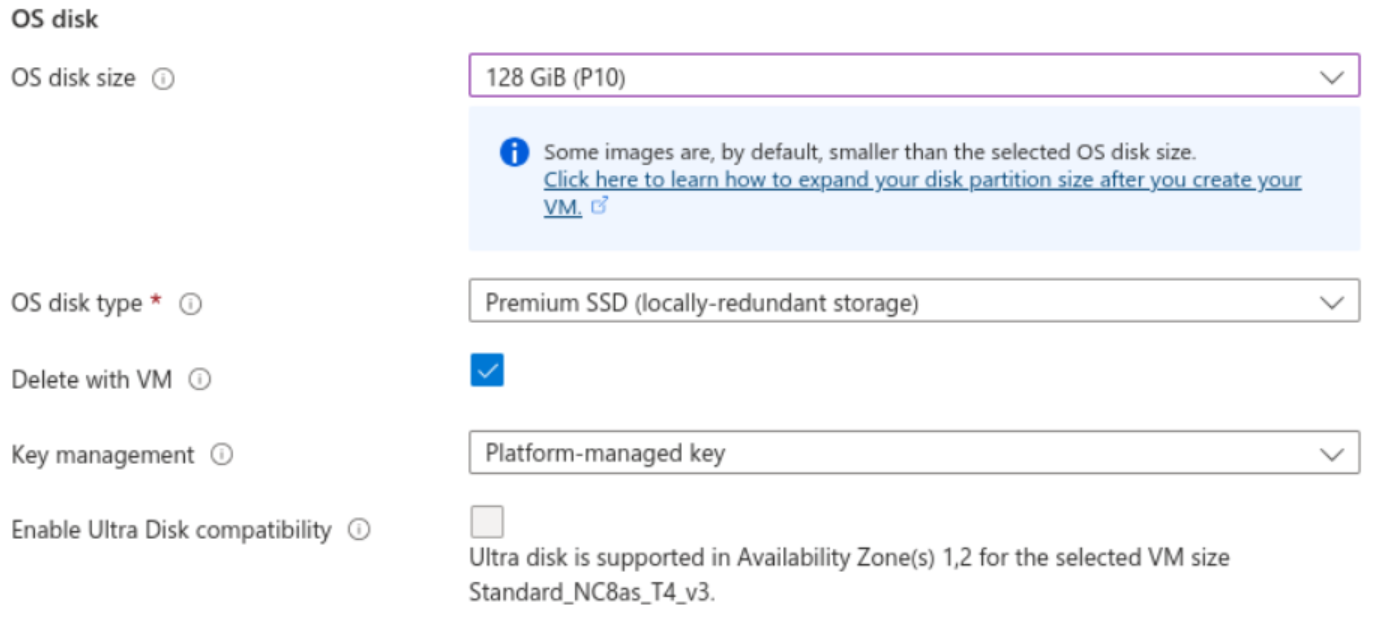

Increase the OS disk size to 128 GiB (P10) and enable the Delete with VM option.

Live Transcoder itself needs 100GiB of the storage.

If you plan to use HLS outputs, increase the value by additional calculated storage.

🚧
When using an instance with a smaller storage capacity, it is important to note that a significant portion of the free space is used for storing log messages in the journal. These log messages are crucial for diagnostics. Insufficient space for the journal can limit the ability to diagnose issues with the instance effectively. To manage disk space efficiently, ensure you set the correct size for SystemKeepFree= and RuntimeKeepFree= in /etc/systemd/journald.conf.

Networking

Under the Networking section, select or create a new Virtual network, then create a Public IP address using the Standard SKU with Static assignment and the Microsoft network routing preference. For the NIC network security group, choose Basic and ensure that the allowed inbound ports match those configured in the Basics section. Finally, enable the Delete public IP and NIC when VM is deleted option.

Management, Monitoring, Advanced and Tags

Under these sections, you can leave all settings at their default values.

👍
Once you complete the setup, review all your configuration details in the Review + create section, then click Create to deploy the virtual machine. The deployment process should take only a few minutes to complete.

Once the VM is created, you will be prompted to download and save your SSH private key. Make sure to store it securely, as it will be required to connect to the virtual machine via SSH.

Aditional inbound port rules

Once the VM is created, open the VM instance overview, navigate to Networking → Network settings, and add the following ports to the inbound security rules under the Network security group.

SSH (TCP port 22) - for SSH
HTTP (TCP port 80) - needed for access to web UI and HLS output
HTTPS (TCP port 443) - needed for secure access to web UI and HLS output
MPEG-TS over RTP/UDP/SRT (UDP ports) - add custom ports for your MPEG-TS streams
NDI (TCP&UDP) - needed for NDI to work, the easiest way is to open port range 5353-7999 for both TCP & UDP [NDI docs]
RTMP input (TCP port 1935) - needed for RTMP server to listen on this port

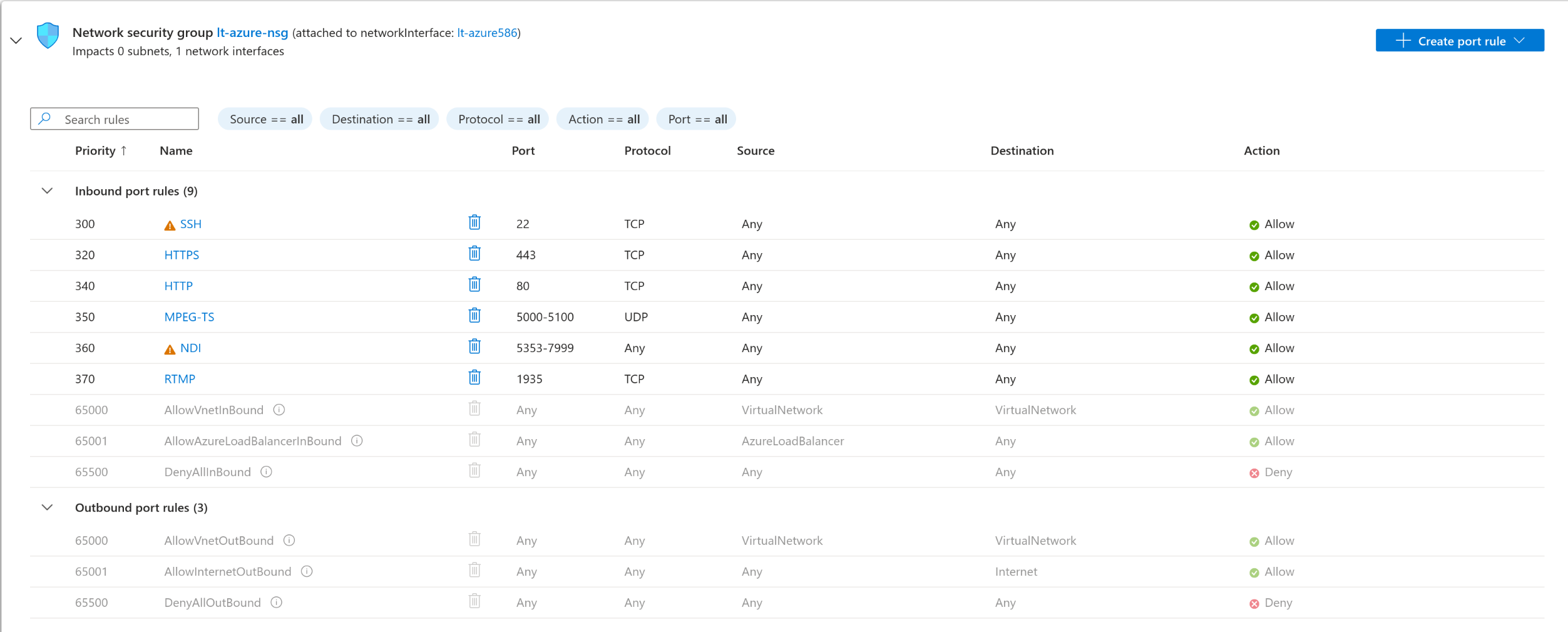

Your Network security group for the virtual machine should afterwards contain the following rules:
